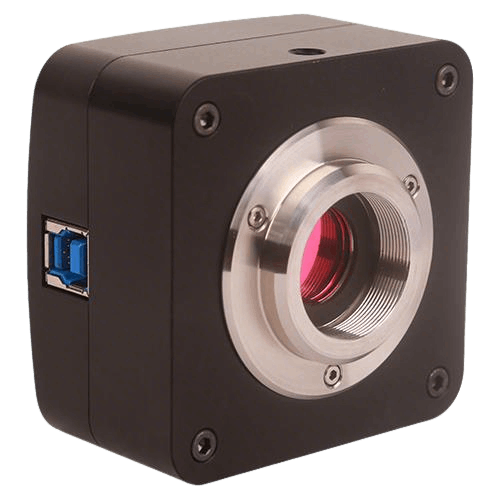

Venuslab ExView U3 Camera

Part Number: NM102800A

Dark current covers 950nm deep infrared (1/30s, 4mV), which is 150nm more than KPA, making it suitable for near-infrared deep tissue observation.

The frame rate is exactly the same as KPA, and the core difference lies in the infrared response upper limit (950nm vs 800nm).

Images are for display purposes only.

Specifications

Sensor Model and Size	Pixel Pitch (μm)	Green Light Sensitivity & Dark Current	FPS/Resolution	Sampling Averaging	Exposure Time
2.8M/ICX674ALG(M) 2/3“ (8.81x6.63)	4.54x4.54	950mv with 1/30s 4mv with 1/30s	15@1938x1460 17@1610x1212 18@1930x1092	1x1	0.05ms~1000s

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

Model

Green Light Sensitivity & Dark Current

Sensor Model and Size

Exposure Time

Sampling Averaging

FPS/Resolution

Pixel Pitch (μm)

Action

NP112000A

420mv with 1/30s 15.2mv with 1/30s

12M/ICX834AQG(C) 1“ (13.15x8.77)

0.06ms~1000s

1x1 2x2

3.6@4248x2836 3.6@2124x1418

3.1x3.1

NM112000A

420mv with 1/30s 12mv with 1/30s (F8.0)

12M/ICX834ALG(M) 1“ (13.15x8.77)

0.06ms~1000s

1x1 2x2

3.6@4248x2836 3.6@2124x1418

3.1x3.1

NP109000A

580mv with 1/30s 12mv with 1/30s

9.0M/ICX814AQG(C) 1“ (12.47x9.98)

0.06ms~1000s

1x1 2x2

4.4@3388x2712 4.4@1694x1356

3.69x3.69

NM109000A

660mv with 1/30s 12mv with 1/30s (F8.0)

9.0M/ICX814ALG(M) 1“ (12.47x9.98)

0.06ms~1000s

1x1 2x2

4.4@3388x2712 4.4@1694x1356

3.69x3.69

NP106000A

880mv with 1/30s 8mv with 1/30s

6.0M/ICX694AQG(C) 1“ (12.48x9.99)

0.06ms~1000s

1x1

7.5@2748x2200 14@2748x1092

4.54x4.54

NM106000A

1000mv with 1/30s 8mv with 1/30s

6.0M/ICX694ALG(M) 1“ (12.48x9.99)

0.06ms~1000s

1x1

7.5@2748x2200 14@2748x1092

4.54x4.54

NP102800A

800mv with 1/30s 4mv with 1/30s

2.8M/ICX674AQG(C) 2/3“ (8.81x6.63)

0.05ms~1000s

1x1

15@1938x1460 17@1610x1212 18@1930x1092

4.54x4.54

NP101400B

2000mv with 1/30s 4.8mv with 1/30s

1.4M/ICX825AQA(C) 2/3“ (8.88x6.70)

2000mv with 1/30s 4.8mv with 1/30s

1.4M/ICX825ALA(M) 2/3“ (8.88x6.70)
