CCD Cameras

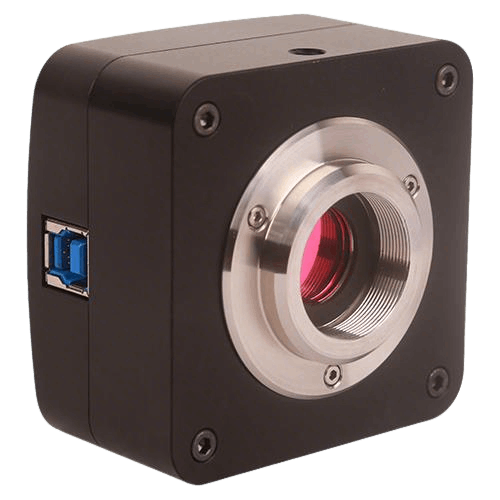

Venuslab ExView U3 Camera
Covers conventional bright field, low-light field, and fluorescence light field microscopic observation
- Adopts Sony ExView HAD CCD chip
- Supports a maximum exposure time of 1 hour
- USB 3.0 (5Gbps) high-speed interface
- Integrated CNC aluminum alloy housing
- Multi-platform SDK (Windows/Linux/macOS/Android)
NP112000A
12-megapixel Sony ICX834AQG (C) sensor, featuring a 1" sensor format (13.15×8.77mm) and a 3.1μm pixel pitch.
NM112000A
12-megapixel Sony ICX834ALG (M), with the same 1" sensor format and 3.1μm pixel pitch.
NP109000A
9M pixels Sony ICX814ALG (M), with the same 1" target surface and 3.69μm pixels.
NM109000A
9M pixels Sony ICX814ALG (M), with the same 1" target surface and 3.69μm pixels.
NP106000A
6M pixels Sony ICX694AQG (C), 1" target surface (12.48×9.99mm), 4.54μm pixels.
NM106000A
6M pixels Sony ICX694ALG (M), with the same 1" target surface and 4.54μm pixels.
NP102800A
2.8M pixels Sony ICX674AQG (C), 2/3″ target surface (8.81×6.63mm), 4.54μm pixels (large pixels, high sensitivity).
NM102800A
2.8M pixels Sony ICX674ALG (M), with the same 2/3″ target surface and 4.54μm pixel size.
NP101400B
1.4M pixels Sony ICX825AA (C), 2/3″ target surface (8.88×6.70mm), 6.45μm ultra-large pixels (extreme light sensitivity).
NM101400B
1.4M pixels Sony ICX825AL (M), with the same 2/3″ target surface and 6.45μm pixels.
Venuslab ExView MTR3 Camera
High-end imaging equipment dedicated to scientific research and precision testing
- Dual-stage semiconductor deep refrigeration technology
- High-sensitivity and low-noise architecture
- High-speed interface and full-scenario compatibility
- Industrial-grade durable design
MP112000A
12M pixels, ICX884AQG (C) sensor, size 1/3" (3.5x3.7) mm
MM112000A
12M pixels, ICX884ALM (G) sensor, size 1/3" (3.5x3.7) mm
MP109000A
9M pixels, ICX474AQG (C) sensor, size 1/2.7" (3.9x4.8) mm
MM109000A
9M pixels, ICX474ALM (G) sensor, size 1/2.7" (3.9x4.8) mm
MP106000A
6M pixels, ICX695AQG (C) sensor, size 1/2.8" (3.9x5.9) mm
MM106000A
6M pixels, ICX695ALM (G) sensor, size 1/2.8" (3.9x5.9) mm
MP102800A
2.8M pixels, ICX674AQG (C) sensor, size 2/3" (8.8x6.6) mm
MM102800A
2.8M pixels, ICX674ALM (G) sensor, size 2/3" (8.8x6.6) mm
MP101400A
1.4M pixels, ICX825AQG (C) sensor, size 2/3" (8.8x6.6) mm
MM101400A
1.4M pixels, ICX825ALM (G) sensor, size 2/3" (8.8x6.6) mm
MP101400B
1.4M pixels, ICX825AQM (C) sensor, size 2/3" (8.8x6.6) mm
MM101400B
1.4M pixels, ICX825ALM (G) sensor, size 2/3" (8.8x6.6) mm
Venuslab ExView EX Camera
Cost-effective low-light imaging and basic detection equipment
- Excellent low-light capturing capability
- Strong general usability
- Combining adaptability and durability
