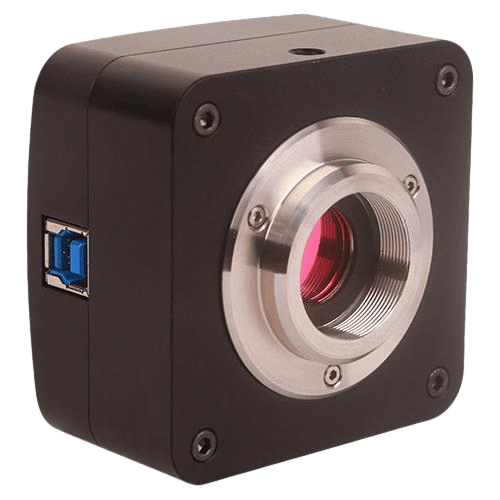

Venuslab ExView U3 Camera

Part Number: NM101400B

The dark current parameters are identical to those of the KPB (2000nm, 4.8mV). This represents a sensor version iteration (AA vs. AL), with a focus on algorithm optimization (e.g., noise suppression).

The frame rate and exposure parameters remain fully consistent, and it is targeted at customized infrared scenarios.

Sensor Model and Size	Pixel Pitch (μm)	Green Light Sensitivity & Dark Current	FPS/Resolution	Sampling Averaging	Exposure Time
1.4M/ICX825ALA(M) 2/3“ (8.88x6.70)	6.45x6.45	2000mv with 1/30s 4.8mv with 1/30s	25@1376x1040	1x1	0.07ms~1000s

Sensor Model and Size

Pixel Pitch (μm)

Green Light Sensitivity & Dark Current

FPS/Resolution

Sampling Averaging

Exposure Time

1.4M/ICX825ALA(M) 2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s 4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1000s

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

1-10

TBD

10-

TBD

Explore Series

	Model	Green Light Sensitivity & Dark Current	Sensor Model and Size	Exposure Time	Sampling Averaging	FPS/Resolution	Pixel Pitch (μm)
	NP112000A	420mv with 1/30s 15.2mv with 1/30s	12M/ICX834AQG(C) 1“ (13.15x8.77)	0.06ms~1000s	1x1 2x2	3.6@4248x2836 3.6@2124x1418	3.1x3.1		NM112000A	420mv with 1/30s 12mv with 1/30s (F8.0)	12M/ICX834ALG(M) 1“ (13.15x8.77)	0.06ms~1000s	1x1 2x2	3.6@4248x2836 3.6@2124x1418	3.1x3.1		NP109000A	580mv with 1/30s 12mv with 1/30s	9.0M/ICX814AQG(C) 1“ (12.47x9.98)	0.06ms~1000s	1x1 2x2	4.4@3388x2712 4.4@1694x1356	3.69x3.69		NM109000A	660mv with 1/30s 12mv with 1/30s (F8.0)	9.0M/ICX814ALG(M) 1“ (12.47x9.98)	0.06ms~1000s	1x1 2x2	4.4@3388x2712 4.4@1694x1356	3.69x3.69		NP106000A	880mv with 1/30s 8mv with 1/30s	6.0M/ICX694AQG(C) 1“ (12.48x9.99)	0.06ms~1000s	1x1	7.5@2748x2200 14@2748x1092	4.54x4.54		NM106000A	1000mv with 1/30s 8mv with 1/30s	6.0M/ICX694ALG(M) 1“ (12.48x9.99)	0.06ms~1000s	1x1	7.5@2748x2200 14@2748x1092	4.54x4.54		NP102800A	800mv with 1/30s 4mv with 1/30s	2.8M/ICX674AQG(C) 2/3“ (8.81x6.63)	0.05ms~1000s	1x1	15@1938x1460 17@1610x1212 18@1930x1092	4.54x4.54		NM102800A	950mv with 1/30s 4mv with 1/30s	2.8M/ICX674ALG(M) 2/3“ (8.81x6.63)	0.05ms~1000s	1x1	15@1938x1460 17@1610x1212 18@1930x1092	4.54x4.54		NP101400B	2000mv with 1/30s 4.8mv with 1/30s	1.4M/ICX825AQA(C) 2/3“ (8.88x6.70)	0.07ms~1000s	1x1	25@1376x1040	6.45x6.45
