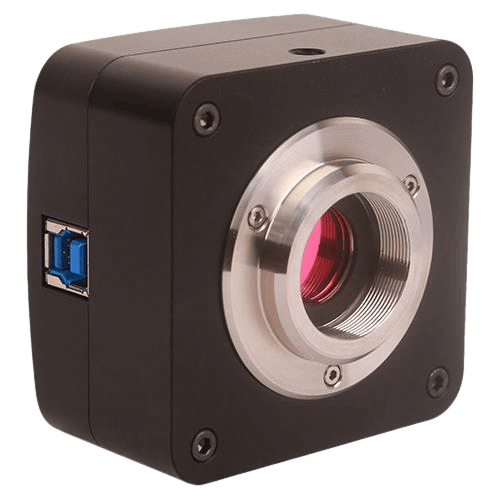

Venuslab ExView U3 Camera

Part Number: NP101400B

Spectral Breakthrough: Dark current covers 2000nm extremely long-wave infrared (1/30s, 4.8mV), suitable for special infrared microscopy (such as material thermal imaging, near-infrared penetration of biological tissues).

High-Speed Mode: 25FPS@1376×1040 (single resolution, focusing on high-speed imaging), exposure 0.07ms~1000s (balancing speed and integration).

Sensor Model and Size	Pixel Pitch (μm)	Green Light Sensitivity & Dark Current	FPS/Resolution	Sampling Averaging	Exposure Time
1.4M/ICX825AQA(C) 2/3“ (8.88x6.70)	6.45x6.45	2000mv with 1/30s 4.8mv with 1/30s	25@1376x1040	1x1	0.07ms~1000s

Sensor Model and Size

Pixel Pitch (μm)

Green Light Sensitivity & Dark Current

FPS/Resolution

Sampling Averaging

Exposure Time

1.4M/ICX825AQA(C) 2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s 4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1000s

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

1-10

TBD

10-

TBD

Explore Series

	Model	Green Light Sensitivity & Dark Current	Sensor Model and Size	Exposure Time	Sampling Averaging	FPS/Resolution	Pixel Pitch (μm)
	NP112000A	420mv with 1/30s 15.2mv with 1/30s	12M/ICX834AQG(C) 1“ (13.15x8.77)	0.06ms~1000s	1x1 2x2	3.6@4248x2836 3.6@2124x1418	3.1x3.1		NM112000A	420mv with 1/30s 12mv with 1/30s (F8.0)	12M/ICX834ALG(M) 1“ (13.15x8.77)	0.06ms~1000s	1x1 2x2	3.6@4248x2836 3.6@2124x1418	3.1x3.1		NP109000A	580mv with 1/30s 12mv with 1/30s	9.0M/ICX814AQG(C) 1“ (12.47x9.98)	0.06ms~1000s	1x1 2x2	4.4@3388x2712 4.4@1694x1356	3.69x3.69		NM109000A	660mv with 1/30s 12mv with 1/30s (F8.0)	9.0M/ICX814ALG(M) 1“ (12.47x9.98)	0.06ms~1000s	1x1 2x2	4.4@3388x2712 4.4@1694x1356	3.69x3.69		NP106000A	880mv with 1/30s 8mv with 1/30s	6.0M/ICX694AQG(C) 1“ (12.48x9.99)	0.06ms~1000s	1x1	7.5@2748x2200 14@2748x1092	4.54x4.54		NM106000A	1000mv with 1/30s 8mv with 1/30s	6.0M/ICX694ALG(M) 1“ (12.48x9.99)	0.06ms~1000s	1x1	7.5@2748x2200 14@2748x1092	4.54x4.54		NP102800A	800mv with 1/30s 4mv with 1/30s	2.8M/ICX674AQG(C) 2/3“ (8.81x6.63)	0.05ms~1000s	1x1	15@1938x1460 17@1610x1212 18@1930x1092	4.54x4.54		NM102800A	950mv with 1/30s 4mv with 1/30s	2.8M/ICX674ALG(M) 2/3“ (8.81x6.63)	0.05ms~1000s	1x1	15@1938x1460 17@1610x1212 18@1930x1092	4.54x4.54		NM101400B	2000mv with 1/30s 4.8mv with 1/30s	1.4M/ICX825ALA(M) 2/3“ (8.88x6.70)	0.07ms~1000s	1x1	25@1376x1040	6.45x6.45
