SiC-VUV-AG Photodetector

Professional-grade Detection Benchmark for the VUV Band

Material and Stability
Anti-interference and Signal Purity
Flexible Gain Adaptation
Environmental Compatibility
Performance and Services

Download

Data Sheet

Overview

Introduction:

This product is a SiC-based vacuum ultraviolet (VUV) amplification-type photodetector with a photosensitive range of 180nm~200nm, commonly used for VUV light measurement. It features high stability, long service life, resistance to high-flux VUV radiation, visible-blind property and low dark current. Equipped with 8-level adjustable gain for quantitative photoelectric conversion, it supports a high-vacuum environment (≤10⁻⁴Pa) with a vacuum flange structure, and provides technical support and non-standard customization services.

Features:

SiC-based photodetector with a photosensitive range of 180nm~200nm, commonly used for vacuum ultraviolet (VUV) light measurement ;
High stability, long service life, and resistance to high-flux VUV radiation ;
Visible-blind property and low dark current ;

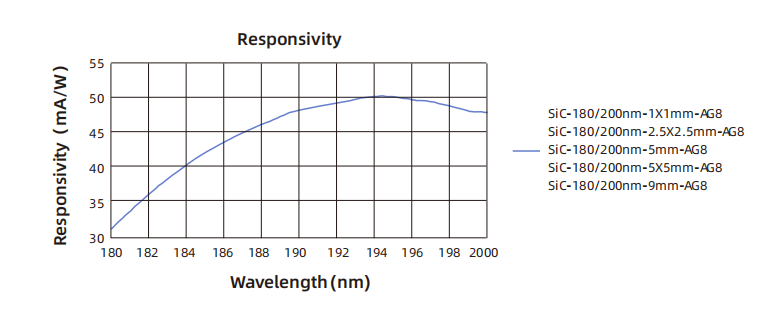

High responsivity at the 193nm VUV wavelength ;
Vacuum flange structure, compatible with high vacuum degree (≤10⁻⁴Pa) ;
Amplification-type detector with 8-level adjustable gain, enabling quantitative photoelectric conversion and suitable for measuring scenarios with different light intensities ;
Excellent performance, high cost-effectiveness, and comprehensive technical support ;
Provision of non-standard customization services .

Dimension:

Specifications

SiC-VUV-AG Series Specifications Sheet

Product Model	SiC-VUV-AG
Spectral Response Range	180nm～200nm
Responsivity (@13.5nm)	58mA/W
Gain Range	High-Z Load: 1.51 kV/A to 4.75 MV/A; 50Ω Load: 0.75 kV/A to 2.38 MV/A
Signal Amplitude	High-Z Load: 0 V–10V; 50Ω Load: 0–5 V
Gain Adjustment Method	Rotary step adjustment: 0–70 dB, 10 dB per step, 8 steps total. Bandwidth is inversely proportional to gain.
Operating Temperature	-20°C to 80°C
Storage Temperature	-55°C to 90°C
Signal Interface	SMA Connector

Adjustable Gain Parameters

Detailed Adjustable Gain Specifications Sheet

	0dB	10dB	20dB	30dB
Gain (Hi-Z)	1.51×10³ V/A	4.75×10³ V/A	1.5×10⁴ V/A	4.75×10⁴ V/A
Gain (50Ω)	0.75×10³ V/A	2.38×10³ V/A	0.75×10⁴ V/A	2.38×10⁴ V/A
Bandwidth (BW)	12MHz	1.6MHz	1MHz	260kHz
Noise (RMS)	258μV	192μV	207μV	211μV
	40dB	50dB	60dB	70dB
Gain (Hi-Z)	1.51×10⁵ V/A	4.75×10⁵ V/A	1.5×10⁵ V/A	4.75×10⁶ V/A
Gain (50Ω)	0.75×10⁵ V/A	2.38×10⁵ V/A	0.75×10⁶ V/A	2.38×10⁶ V/A
Bandwidth (BW)	90kHz	28kHz	9kHz	3kHz
Noise (RMS)	214μV	234μV	277μV	388μV
Signal Offset	±8mV(Typ.) ，±12mV(Max)
