Low Dark Current Silicon PIN Photodiode (TO packaging)
产品编号: PDCT01-202
The large spherical lens can concentrate light, with a low-light capture efficiency of over 20%. It can improve detection sensitivity without additional optical components.
Applications: Low-light ambient light monitoring, low-power laser signal reception, and auxiliary for medical low-light imaging.
注意事项

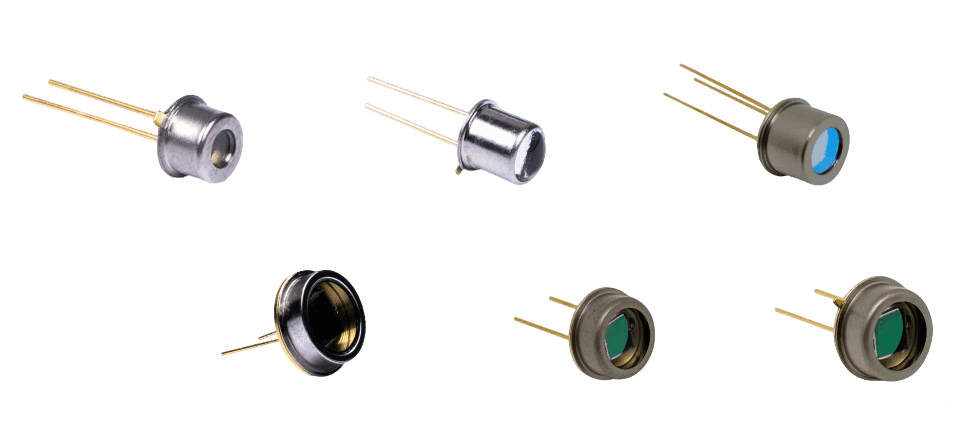

- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Photosensitive Area Size (with Shape) | 1.1×1.1mm (Square) | Package Subtype (Including Window) | TO18, Large Ball Lens |
| Dark Current (Typ./Max., pA) | 1/6 | Junction Capacitance (Typ., pF) | 1.125 |
| Rise Time (Typ., μs) | 0.04 | Equivalent Noise Power (Typ., W/Hz¹/²) | 1.7×10⁻¹⁵ |
浏览全部型号
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT01-201
1.1×1.1mm square photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT07-001
2.6×2.6mm square photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT14-001
3.7×3.7mm square photosensitive surface.
