Low Dark Current Silicon PIN Photodiode (TO packaging)
产品编号: PDCT15-001
The photosensitive area is slightly larger, resulting in better uniformity when detecting large-area light fields (such as display backlights). It is compatible with the circuit design of PDCT14-001 and can be directly replaced for upgrading.
Applications: Detection of display backlight uniformity, light intensity monitoring of large-area LED modules, multi-channel optical signal collection.
注意事项

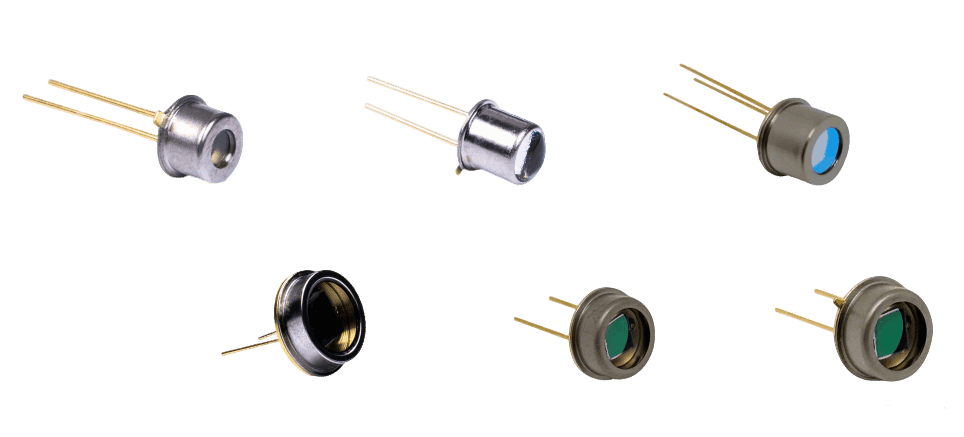

- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Photosensitive Area Size (with Shape) | 3.9×3.9mm (Square) | Package Subtype (Including Window) | TO5, Optical Glass/Flat Window |
| Dark Current (Typ./Max., pA) | 3.5/20 | Junction Capacitance (Typ., pF) | 170 |
| Rise Time (Typ., μs) | 0.37 | Equivalent Noise Power (Typ., W/Hz¹/²) | 4.5×10⁻¹⁵ |
