Low Dark Current Silicon PIN Photodiode (TO packaging)
Silicon PIN structure photoelectric conversion device
- Flexible packaging adaptation
- Extremely low dark current
- Industrial-grade tolerance
- Fast response speed
输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。
Overview
Specifcations
Applications
Introduction:
It has a spectral response range of 350~1060nm, with the advantages of extremely low dark current and low junction capacitance. It adopts TO packaging and is suitable for scenarios such as optical power detection and optical analysis equipment.
The photosensitive surface size, optical window type, and number of pins can be customized according to requirements (such as non-standard photosensitive surface sizes), flexibly meeting the installation and detection needs of different devices.
Features:
- Ultra-low dark current, accurate weak light detection
- TO package for flexible adaptation
- Wide spectrum + fast response
- Industrial-grade environmental tolerance

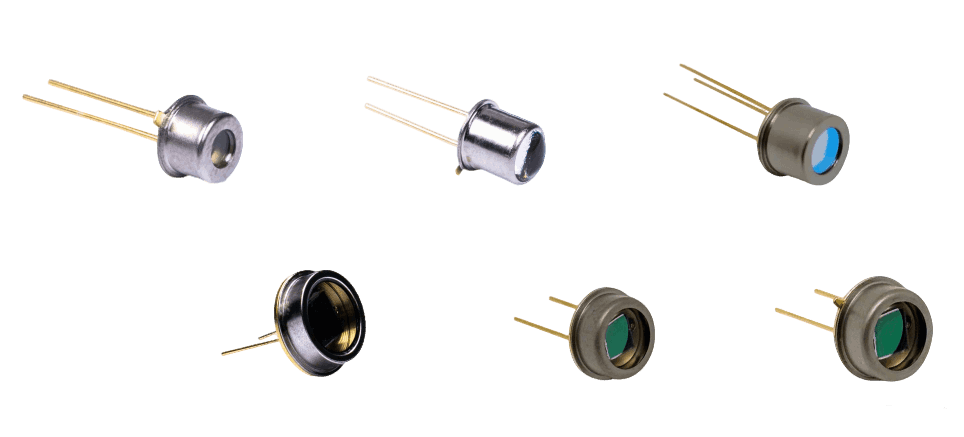

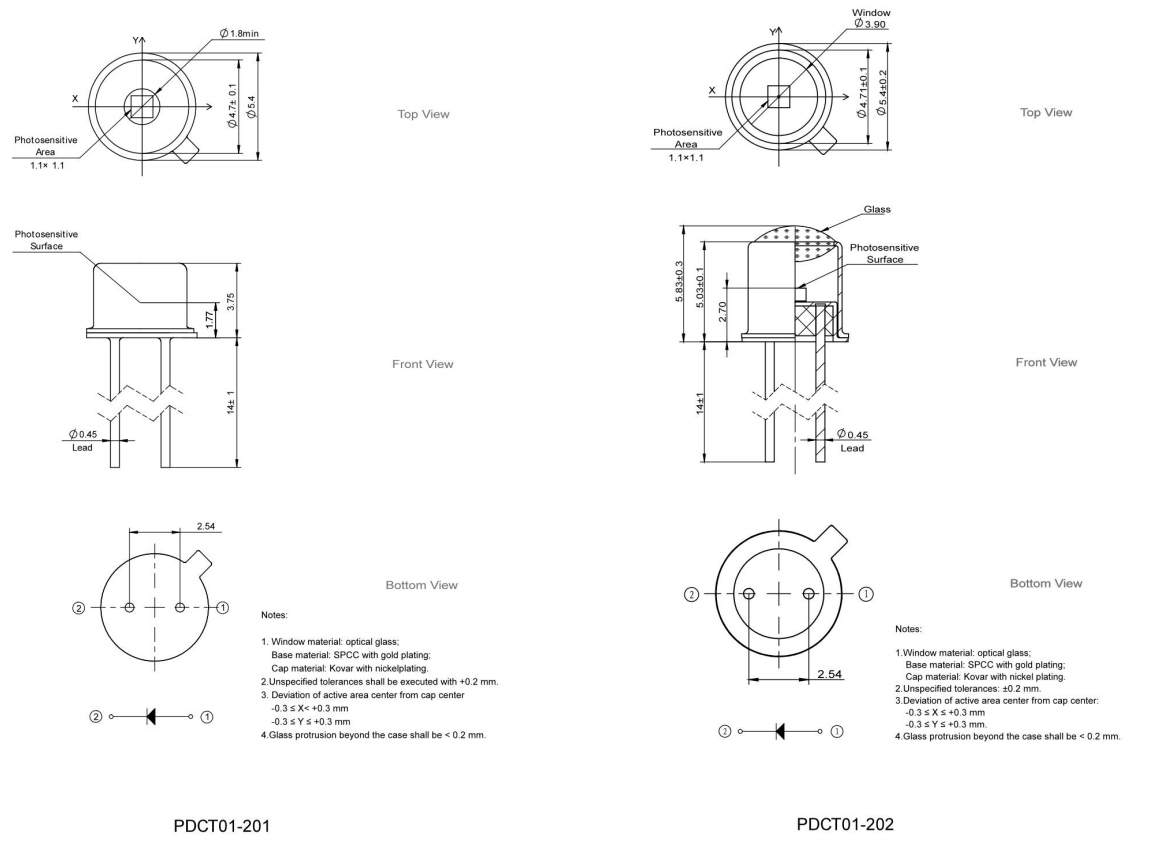

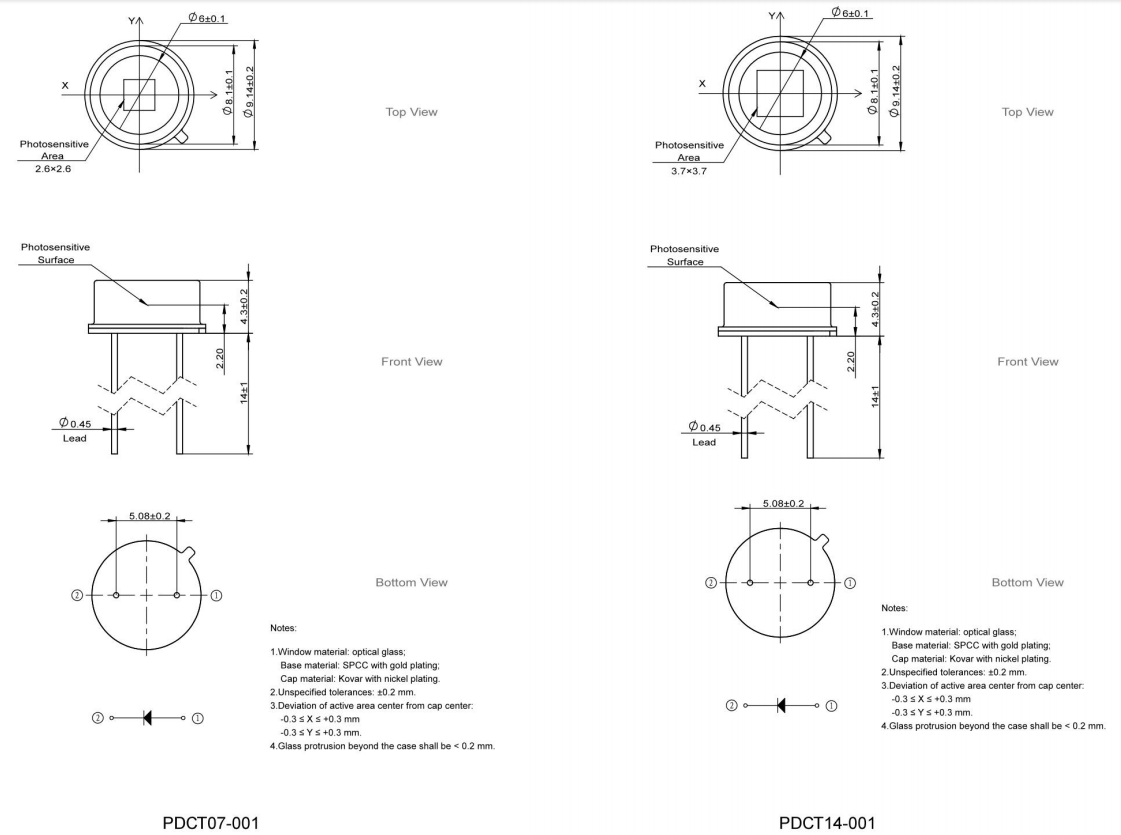

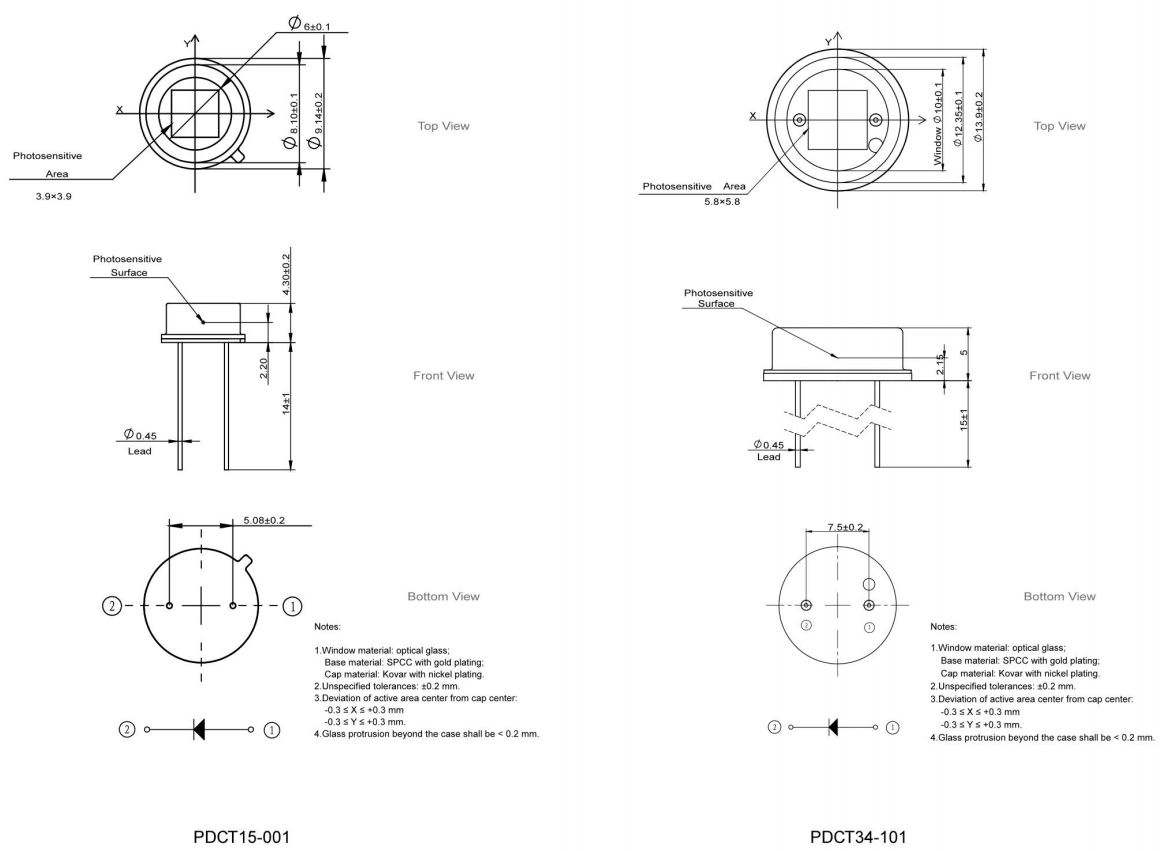

Dimension:
浏览全部型号
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT01-201
1.1×1.1mm square photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT01-202
1.1×1.1mm photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT07-001
2.6×2.6mm square photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT14-001
3.7×3.7mm square photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT15-001
3.9×3.9mm square photosensitive surface.
