| 数量 | 价格(USD) | 发货日期 |
|---|---|---|
| 1-10 | 待定 | |
| 10- | 待定 |
注意：发货日期以上是因库存不足而调整的。
订阅Venus Lab Inner Lens，抢先获得行业最新
科研突破、新品发布和特别活动的独家内幕。
当订阅我们的品牌资讯时，您的个人信息将被妥善保护，
并严格遵守我们的隐私政策。

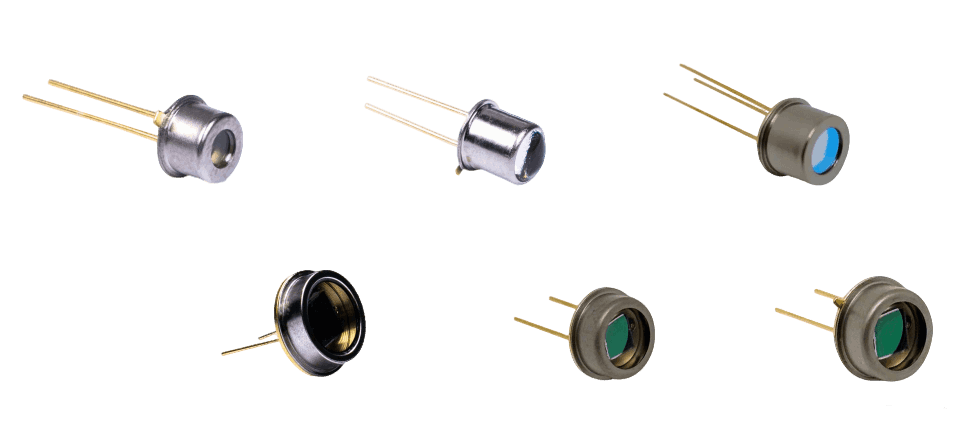

Low Dark Current Silicon PIN Photodiode (TO packaging)
产品编号: PDCT14-001
Light-sensitive area: 35%. The signal is more stable during medium and high light intensity detection. Shunt resistance: Min. 3GΩ (excellent insulation, small leakage current).
Applications: Industrial optical power monitors, packaging film light transmittance detection, medium-precision luminous flux testing.
注意事项
- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Photosensitive Area Size (with Shape) | 3.7×3.7mm (Square) | Package Subtype (Including Window) | TO5, Optical Glass/Flat Window |
| Dark Current (Typ./Max., pA) | 3.5/20 | Junction Capacitance (Typ., pF) | 160 |
| Rise Time (Typ., μs) | 0.35 | Equivalent Noise Power (Typ., W/Hz¹/²) | 4.5×10⁻¹⁵ |
浏览全部型号
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT01-201
1.1×1.1mm square photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT01-202
1.1×1.1mm photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT07-001
2.6×2.6mm square photosensitive surface.
