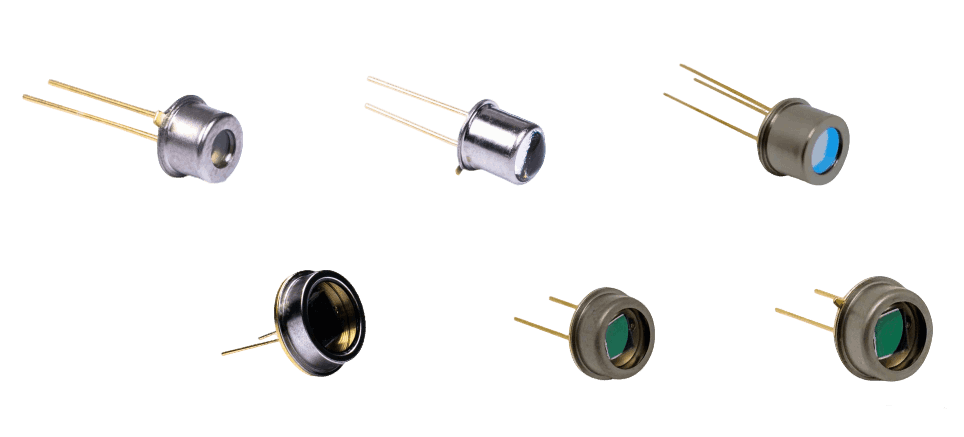

Low Dark Current Silicon PIN Photodiode (TO packaging)
产品编号: PDCT07-001
A balance between size and performance, with a photosensitive area twice as large as that of the PDCT01 series, resulting in higher light absorption efficiency.
At the same time, it retains the characteristic of low dark current, making it suitable for most general detection scenarios.
注意事项
- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Photosensitive Area Size (with Shape) | 2.6×2.6mm (Square) | Package Subtype (Including Window) | TO5, Optical Glass/Flat Window |
| Dark Current (Typ./Max., pA) | 2.5/15 | Junction Capacitance (Typ., pF) | 70 |
| Rise Time (Typ., μs) | 0.15 | Equivalent Noise Power (Typ., W/Hz¹/²) | 2.4×10⁻¹⁵ |
浏览全部型号
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT01-201
1.1×1.1mm square photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT01-202
1.1×1.1mm photosensitive surface.
Low Dark Current Silicon PIN Photodiode (TO packaging)
PDCT14-001
3.7×3.7mm square photosensitive surface.
