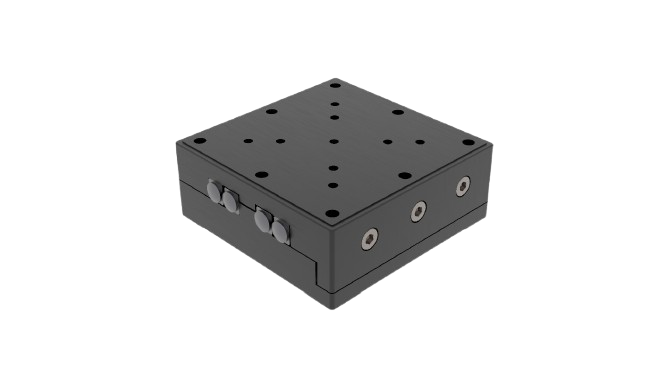

VL PZT Linear Motor

Part Number: VL-PZT-L-18-S

Advantages: Power-off self-locking, position retention after power cut, ultra-low heat generation, ideal for enclosed spaces.

Differentiation: 1 order of magnitude higher precision than lead screw stages; 2 orders of magnitude longer stroke than piezo stages.

Applications: Fiber alignment, precision lens assembly.

Images are for display purposes only.

Specifications

Travel Range	Resolution	Max Load
18 mm	10 nm	1.0 kg

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Max Load	Travel Range	Resolution
	VL-PZT-L-90-T	3.0 kg	90 mm	20 nm		VL-PZT-XY-250	10.0 kg	250 × 250 mm	50 nm		VL-PZT-L-200	5.0 kg	200 mm	50 nm
