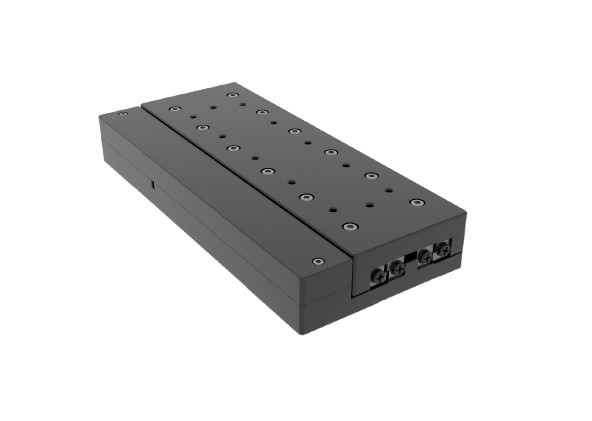

VL PZT Linear Motor

Part Number: VL-PZT-L-200

Advantages: Ultimate stroke-precision balance; nano-resolution & high straightness retained during long-distance movement.

Differentiation: Replaces bulky servo-screw solutions with simpler structure & faster response.

Applications: Laser processing, spectrometer grating drive, long-rail precision measurement.

Images are for display purposes only.

Specifications

Travel Range	Resolution	Max Load
200 mm	50 nm	5.0 kg

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Max Load	Travel Range	Resolution
	VL-PZT-L-18-S	1.0 kg	18 mm	10 nm		VL-PZT-L-90-T	3.0 kg	90 mm	20 nm		VL-PZT-XY-250	10.0 kg	250 × 250 mm	50 nm
